Lonsdor K518 Pro Read Toyota Corolla Hybrid 2022- 4A IMMO Data

How to read Toyota Corolla Hybrid 2022- 4A smart key IMMO Data using Lonsdor K518 Pro key programmer and FP30 cable. Then you can generate emulator key and add key.

This is a Japanese model, find immo box under the instrument cluster on the driver side.

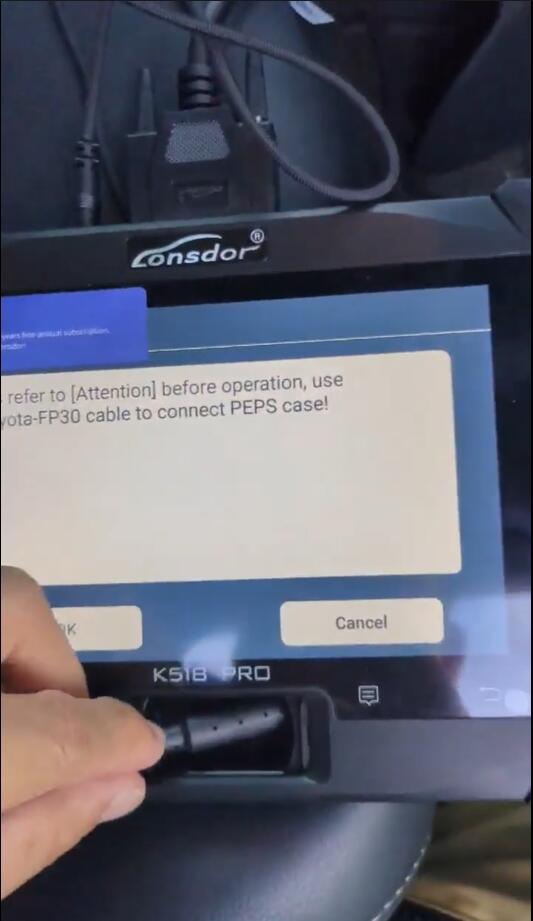

Connect FP30 30PIN cable with immo box. Connect the other end with OBD cable of K518 Pro.

Select Toyota->Select from type->All smart keys lost->Type 3 (2022-)-> 4A
Back up immo data.

Put the Pro antenna cable into card slot. This function requires network connection.

Turn on ignition, if fails, turn on the emergency indicators.

Input 17-digit VIN to access.

Calculating immo data

Input file name to save data.

Back up immo data successfully. This file can be used to add key/delete key/generate emergency key (AKL).

After backup is completed, disconnect FP30 cable, roll back the installation of PEPS case, connect well all connectors and plugs.

Then select

Generate emergency key (Pro Antenna)

Connect simu-antenna and place the antenna’s top in the card slot.

Select immo data file just saved.

Generate emergency key successfully.

Perform the following steps:

1. Step on car brake once, and press the ignition switch once.
2.Quickly place simu-antenna vertically on ignition switch, keep the simu-antenna top aimed at the central position of the igntion switch and wait till the dashboard turns on

3 if dashboard fails to light up after 3s, repeat step 1 and 2
4. if dashboard fails to light up after multiple attempts, contact after-sales for technical support.

Then select Add smart key function and follow K518 Pro prompts to finish programming.
