Lonsdor K518 Program Land Rover Discovery 4 2014 5-button Smart Key

Lonsdor K518ISE key programmer is able to program remote/smart keys for new and old Land Rover vehicles. Here’s the demo guide on programming Discovery 4 year 2014 smart key with Chinese version K518.



Lonsdor K518ISE LAND ROVER Car List

Series Origin Year Fuel Type Function
Range Rover Other 2008-2015 Other Smart Key Programming
Discovery 3 Other Other Other Key Programming
Freelander 2 Other -12 Other Smart Key Programming
Freelander Other 2003-2005 Other Remote Key Programming
Discovery 4 Other Other Other Smart Key Programming
Evoque Other Other Other Smart Key Programming

land-rover-discovery-4

Key information:

Original key: 5-button smart key

Frequency: 433MHz

Device to program: Lonsdor K518 car key programmer



Procedure:

Connect K518 host with vehicle via OBD socket

Turn ignition on

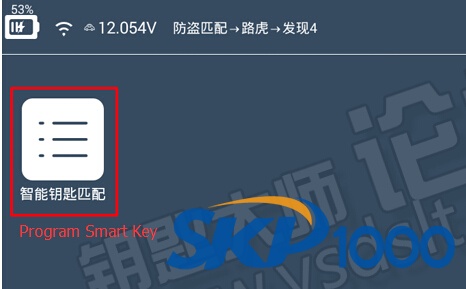

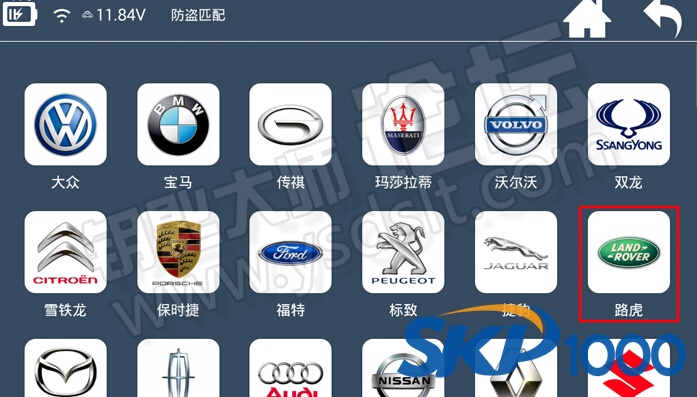

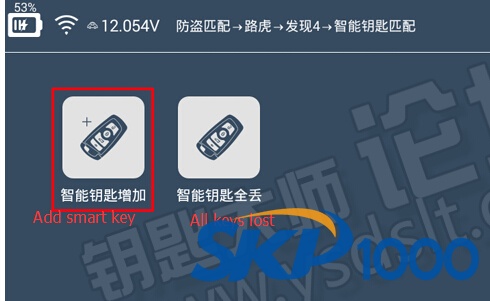

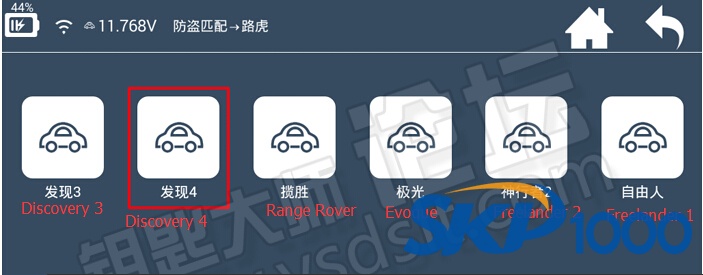

Select Land Rover->Discovery 4->Program Smart Key->Add smart key (or all keys lost)

lonsdor-k518-discovery-1

lonsdor-k518-discovery-2

lonsdor-k518-discovery-3

lonsdor-k518-discovery-4

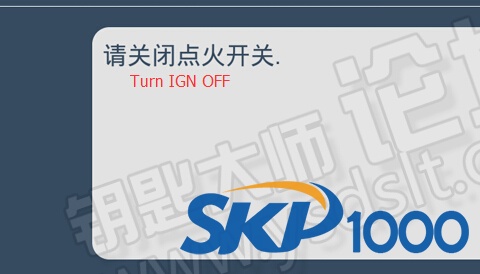

Turn ignition off

lonsdor-k518-discovery-5

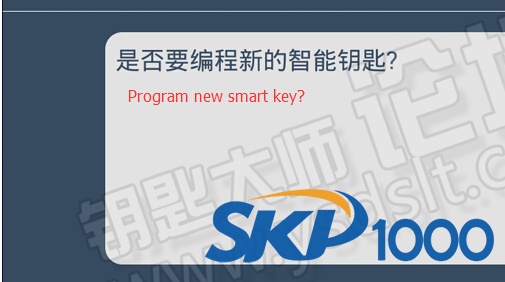

Whether to program new smart key? Press YES to continue

lonsdor-k518-discovery-6

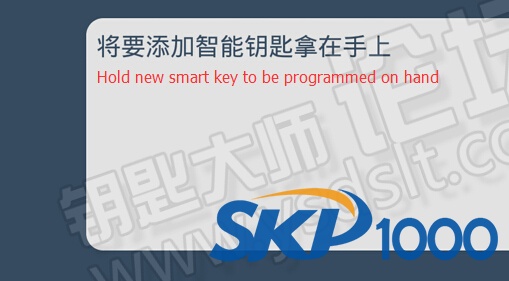

Keep the smart key to be programmed in hand

lonsdor-k518-discovery-7

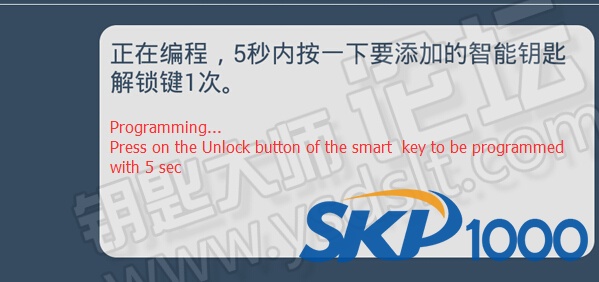

Programming…

Press on the Unlock button of the smart key within 5 sec

lonsdor-k518-discovery-8

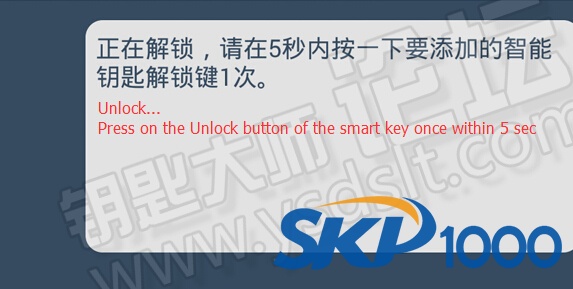

Unlocking

lonsdor-k518-discovery-9

Press on the Unlock button of the smart key for once within 5 sec

Unlocked.

Press on the Unlock button of the smart key for once within 5 sec

lonsdor-k518-discovery-10

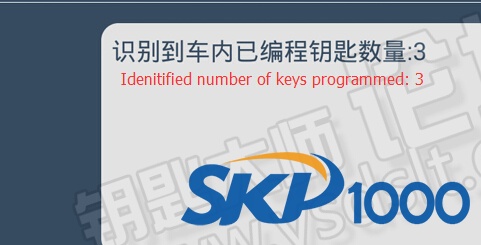

Identified number of keys programmed: 3

lonsdor-k518-discovery-11

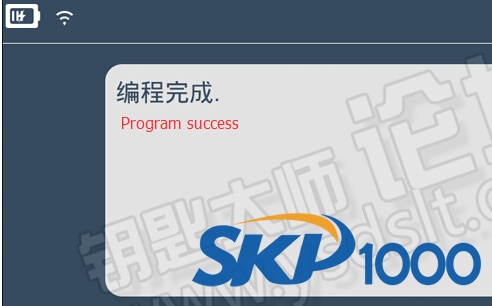

Lonsdor K518ISE Program Discovery 4 smart key success.

Done.
