Lonsdor K518 Program Land Rover Evoque 2013 Smart Key

Guide to program+ Land Rover Evoque 2013  smart key with Lonsdor K518ISE key programmer by OBD.

lonsdor-k518-Evoque-1

Key information:

Original key: 5-button Smart card

Frequency: 315MHz

Card slot: without card slot

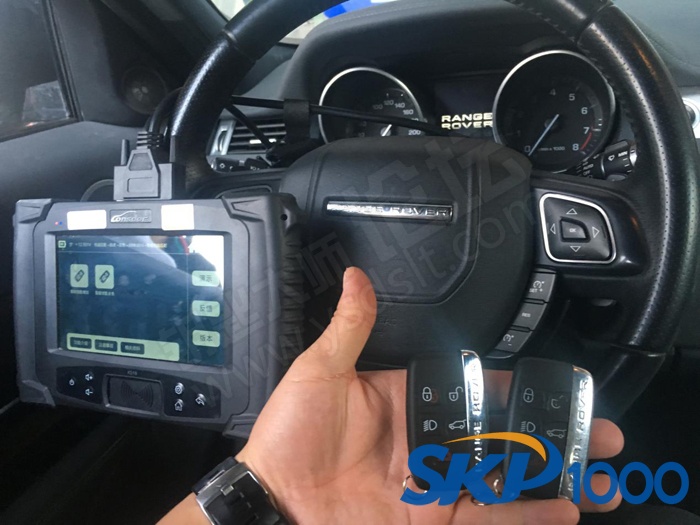

Device to program: Lonsdor K518 tablet key programmer

lonsdor-k518-Evoque-2

Procedure:

Connect K518 host with vehicle via OBD diagnostic socket

Turn ignition ON

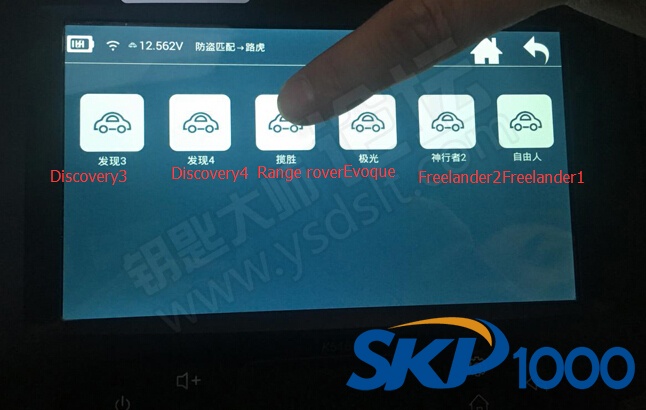

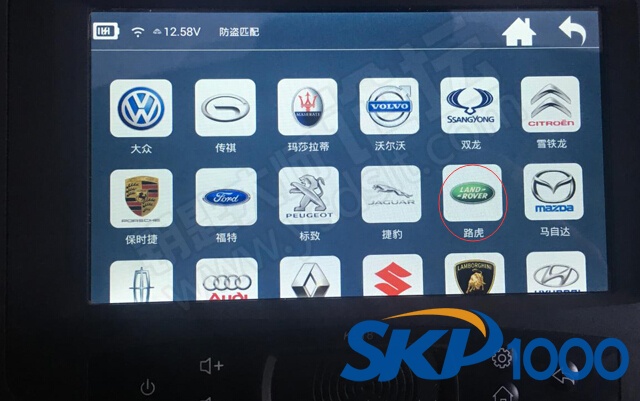

Select Land rover->Evoque (If cannot communicate with Evoque, then you enter from Range Rover)

lonsdor-k518-Evoque-3

lonsdor-k518-Evoque-4

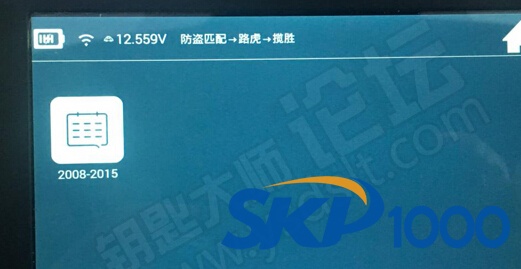

Select 2008-2015

lonsdor-k518-Evoque-5

Select Program Smart Key

lonsdor-k518-Evoque-6

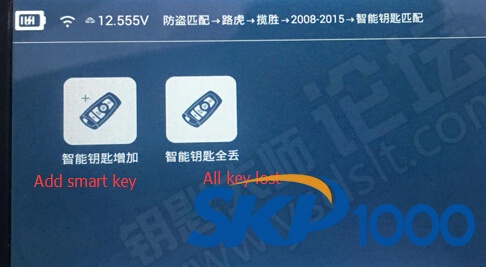

Then Add smart key (K518 allows to program all keys lost as well)

lonsdor-k518-Evoque-7

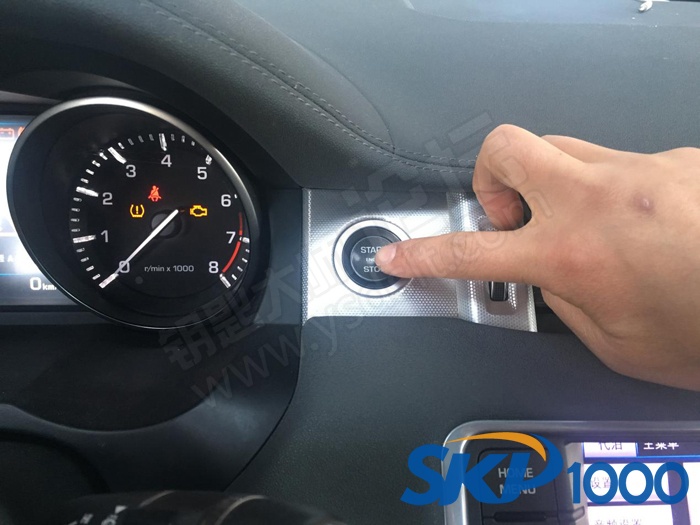

Turn ignition OFF

lonsdor-k518-Evoque-8

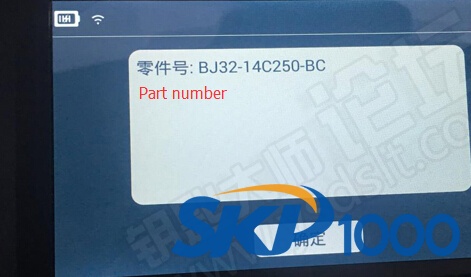

Lonsdor K518ISE will read vehicle information, VIN, part number, software version etc

lonsdor-k518-Evoque-9

lonsdor-k518-Evoque-10

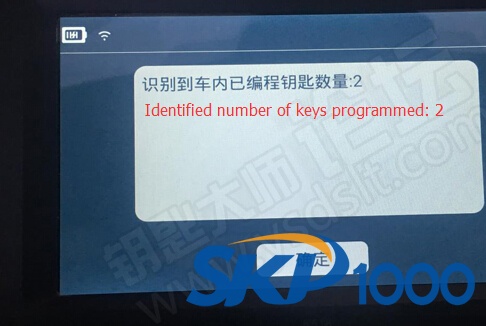

Identified number of keys programmed: 2

lonsdor-k518-Evoque-11

Press YES to program new smart key

lonsdor-k518-Evoque-12

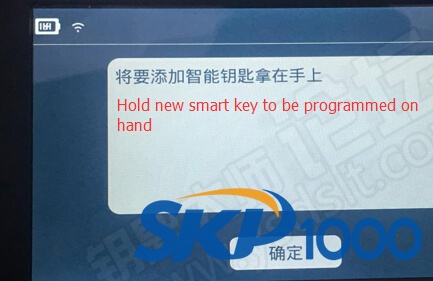

Hold the new smart key to be programmed in hand

lonsdor-k518-Evoque-13

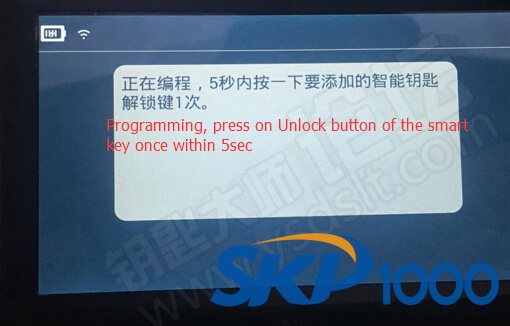

Programming…

Press Unlock button of the smart key for once within 5 sec

lonsdor-k518-Evoque-14

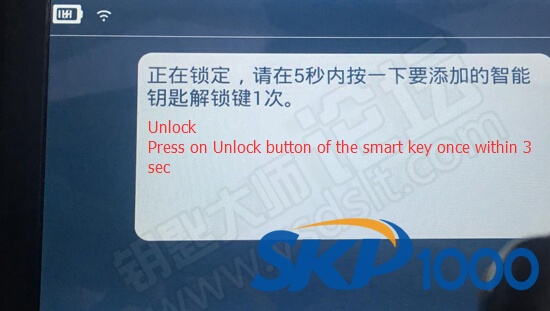

Unlocking…

Press Unlock button of the smart key for once within 5 sec

lonsdor-k518-Evoque-15

Programming smart key in progress

Press Unlock button of the smart key for once within 5 sec. You will hear DI-DI sound which indicates the smart keys has been identified by vehicle

Communicating…

Unlocked

Press Unlock button of the smart key for once within 5 sec.

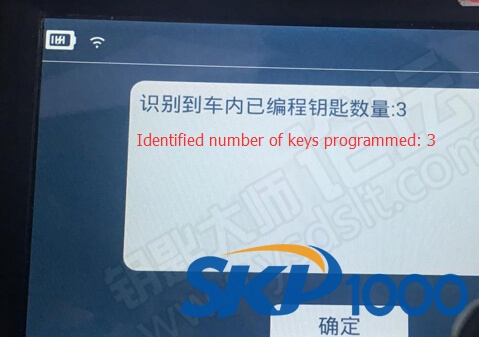

Identified number of keys programmed: 3

lonsdor-k518-Evoque-16

Lonsdor K518 added a smart key to the Evoque 2013 successfully.



Reference:

Lonsdor K518ISE LAND ROVER Car List

Series Origin Year Fuel Type Function
Range Rover Other 2008-2015 Other Smart Key Programming
Discovery 3 Other Other Other Key Programming
Freelander 2 Other -12 Other Smart Key Programming
Freelander Other 2003-2005 Other Remote Key Programming
Discovery 4 Other Other Other Smart Key Programming
Evoque Other Other Other Smart Key Programming
