Lonsdor K518 Program Isuzu D-Max Remote Key

Guide to program remote key on a Isuzu D-Max 4×4 with Lonsdor K518 key programmer via OBD.



Lonsdor K518ISE Isuzu Vehicle List

ISUZU

Series	Origin	Year	Fuel Type	Function
D-MAX	Other	Other	Other	Immobiliser System 1
MU-7	Other	Other	Other	Immobiliser System 1
D-MAX	Other	Other	Other	Immobiliser System 3
MU-X	Other	Other	Other	Immobiliser System 3

Procedure:

Connect Lonsdor K518ISE host with vehicle via OBD diagnostic socket

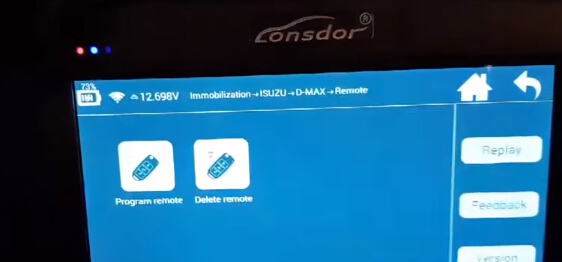

Select Immobilizer->ISUZU->D-MAX->Program remote

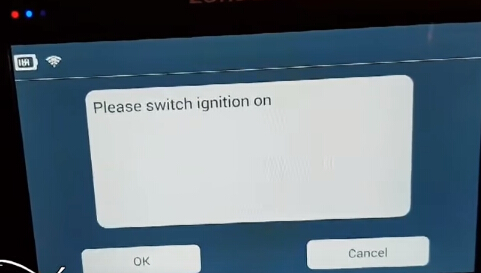

Turn ignition switch to ON position

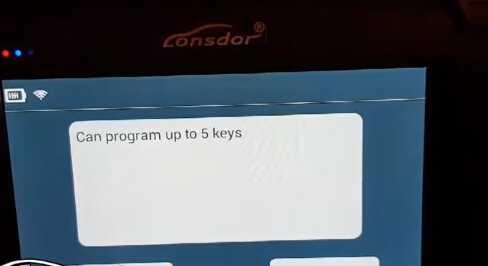

Maximum 5 keys can be programmed

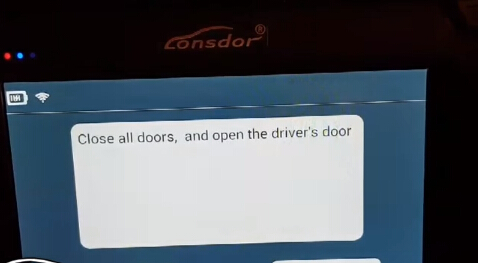

Close all doors and open the door on driver side

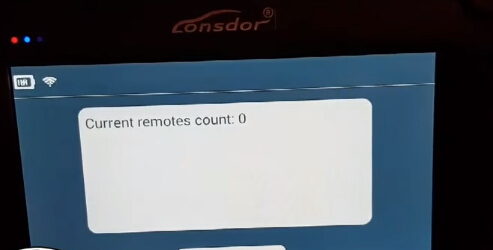

Lonsdor K518 identifies current remote key number: 0

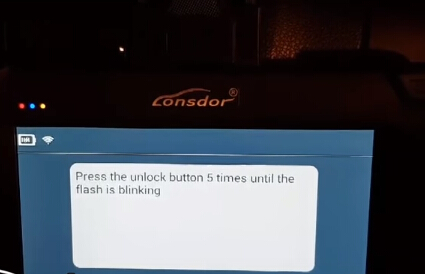

Press the Unlock button of the remote key for 5 times until the indicator flashes

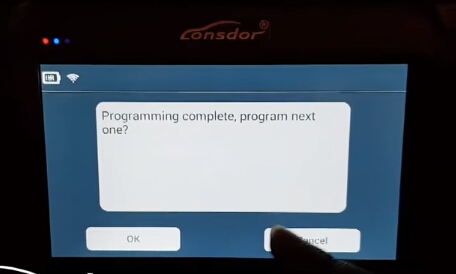

Programming complete, press YES to program next key

Repeat and program next remote

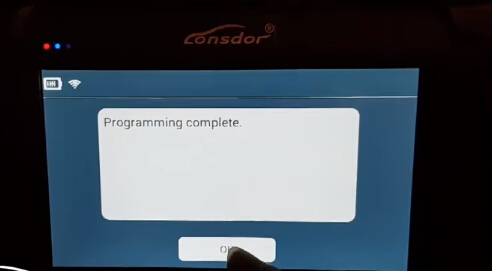

Program success.

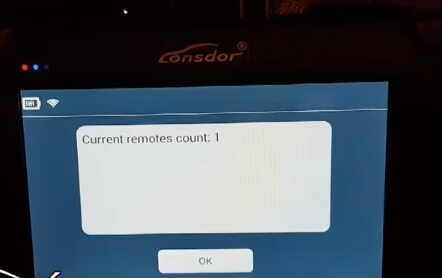

K518 displayed 1 remote has been programmed.

Press YES to program other key or NO to go back.

Test the remote key.

Done!
