Lonsdor K518 Program Mazda CX-5 2016 Smart Key All Keys Lost Without Pin Code

Guide to program Mazda CX-5 2016 year smart key when all keys lost by using Lonsdor K518 Key programmer.

Procedure:

Connect K518 host with vehicle via OBD diagnostic socket

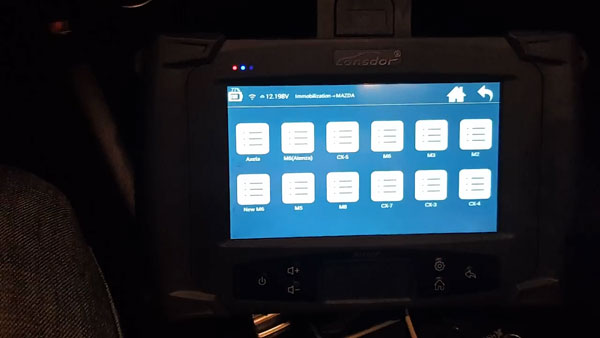

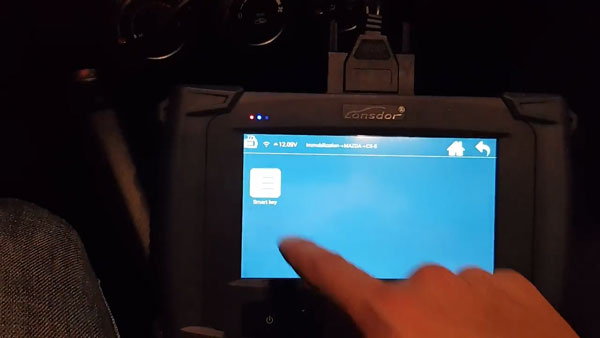

Select Immobilizer-> Mazda -> CX-5k518-mazda-cx5-1 k518-mazda-cx5-2

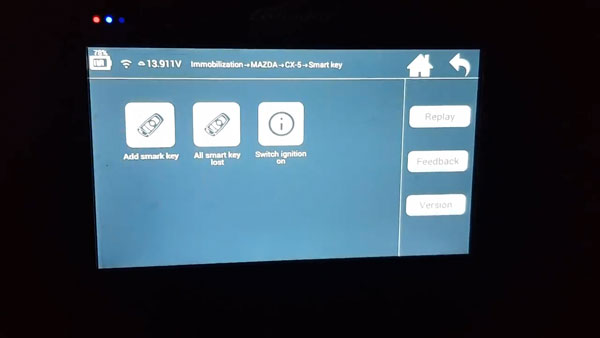

Select Switch ignition on in Lonsdor K518 (all keys have lost, no key to turn ignition on)

k518-mazda-cx5-3

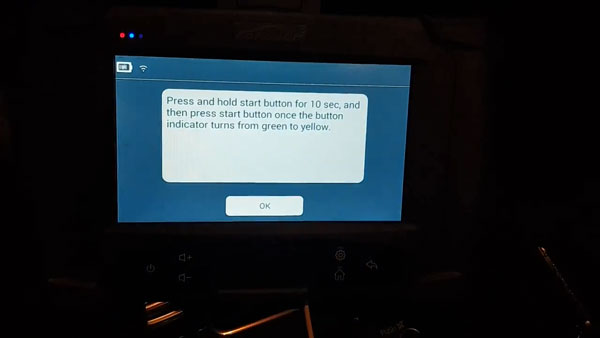

Press and hold Start button for 10 sec, and then press Start button once the button indicator turns from green to yellow

k518-mazda-cx5-4 k518-mazda-cx5-5

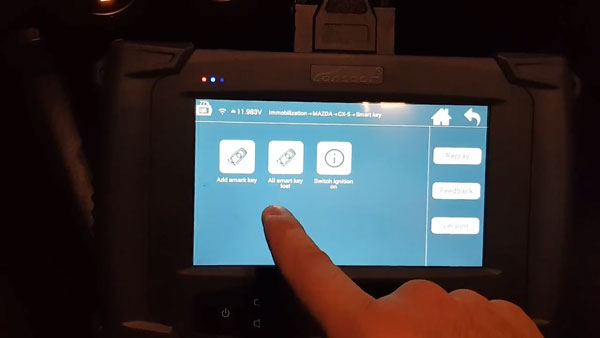

Select All Smart Key Lost

k518-mazda-cx5-6

At least 2 smart keys are reuqired

k518-mazda-cx5-7 k518-mazda-cx5-8

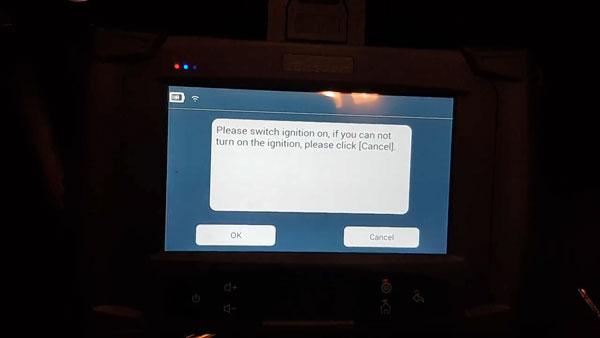

Turn ignition on. If cannot turn on ignition, please click Cancel button

k518-mazda-cx5-9

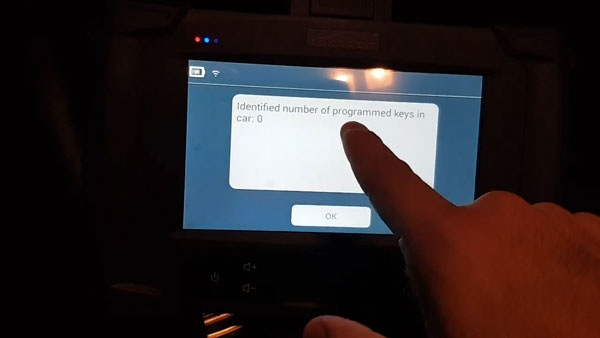

Lonsdor K518ISE identified number of programmed keys in car: 0

k518-mazda-cx5-10

Turn ignition off

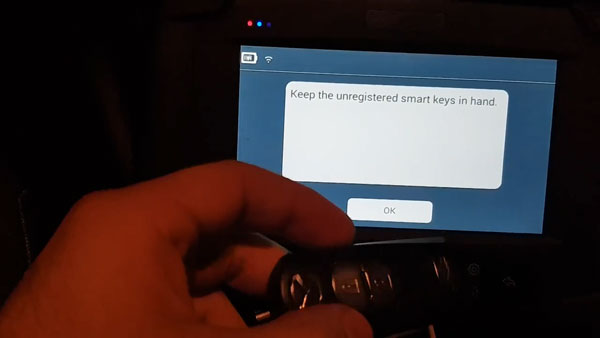

Keep the unregistered smart keys in hand

k518-mazda-cx5-11

Turn ignition to ON position

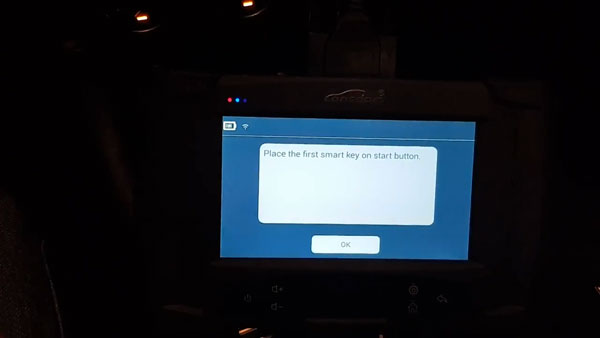

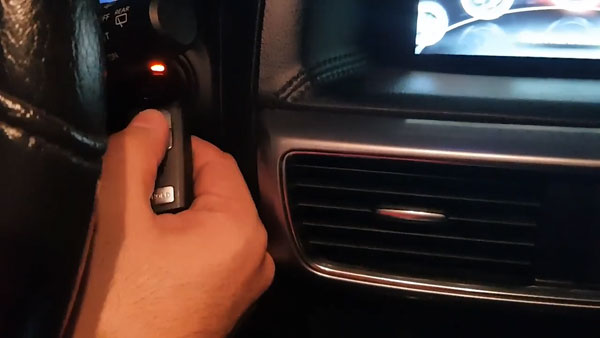

Place the first smart key on Start button

k518-mazda-cx5-12 k518-mazda-cx5-13

Programming…

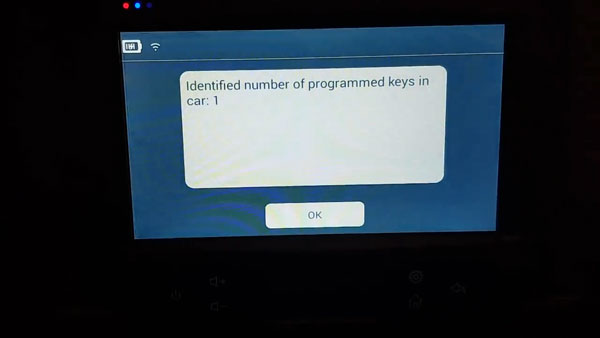

Identified key programmed: 1

k518-mazda-cx5-14

Turn ignition off

Keep the unregistered smart keys in hand

Turn ignition on

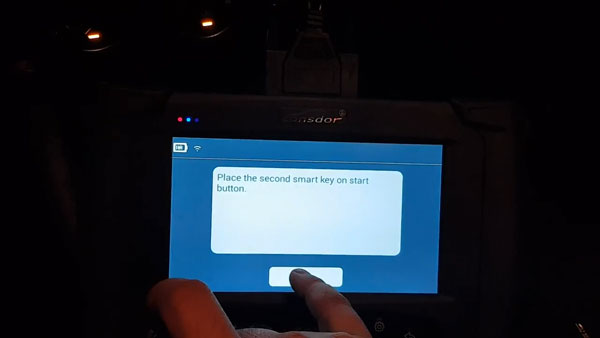

Place the second smart key on Start button

k518-mazda-cx5-15

Programming…

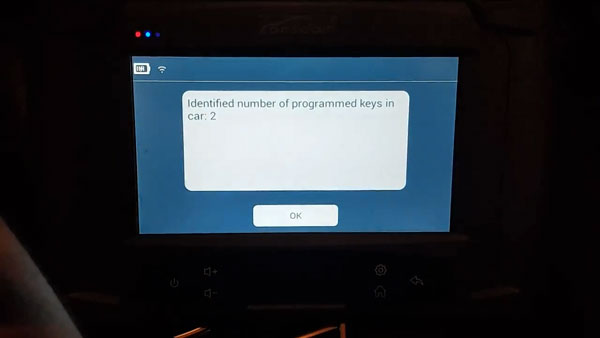

Identified key programmed: 2

k518-mazda-cx5-16 k518-mazda-cx5-17

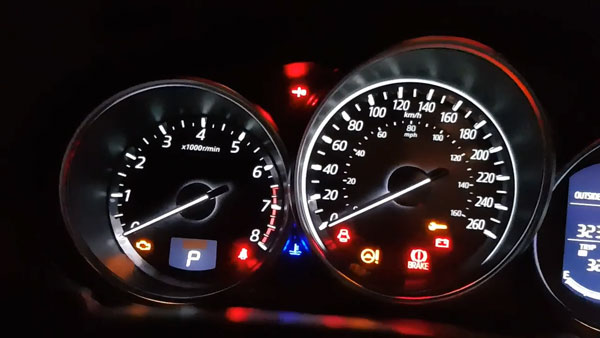

Turn ignition off

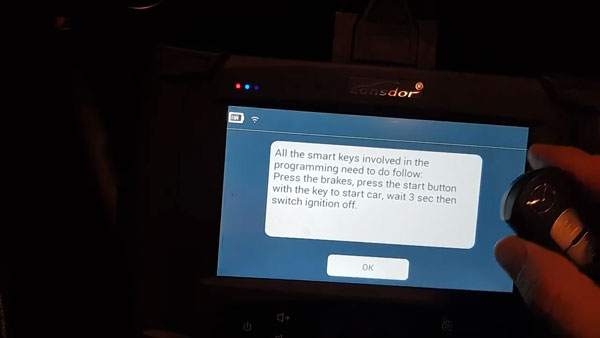

All the smart keys involved in the programming need to do follow:

Press the brake, press the Start button with the key to start car, wait 3 sec then turn ignition off

k518-mazda-cx5-18

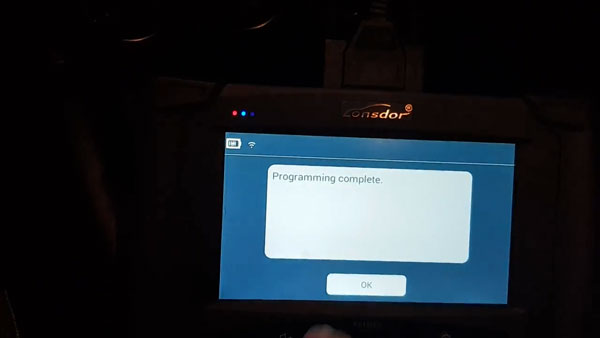

Program complete

k518-mazda-cx5-19

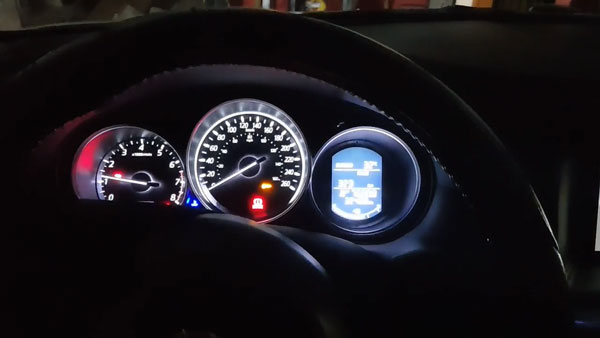

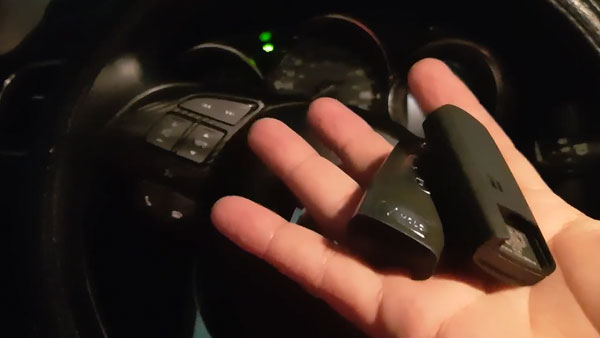

Now you have 2 working keys.

k518-mazda-cx5-20 k518-mazda-cx5-21

Done.
