Lonsdor K518ISE Adds Mazda BT50 2016 Smart Key

Lonsdor K518 key programmer new feedback: successfully added a smart key on a Mazda BT50 year 2016 by OBD.



Procedure with pictures:

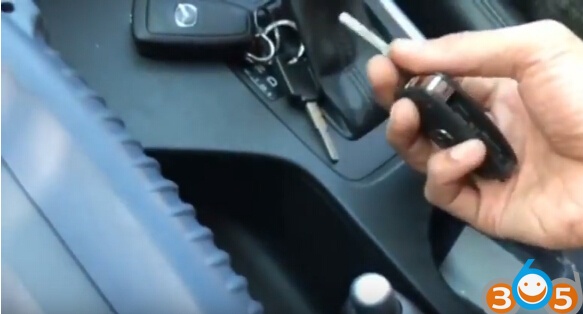

need 1 working key can start engine

lonsdor-k518-mazda-bt50-2

Connect K518 host with vehicle via OBD diagnostic socket

Turn on Lonsdor K518 and turn ignition switch on

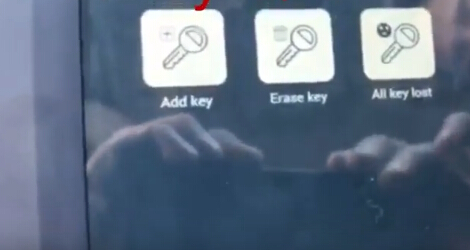

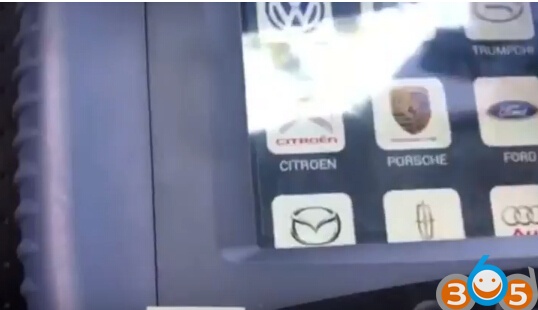

Select Mazda->BT50->2012 up-> Immobilizer ->Add a key

lonsdor-k518-mazda-bt50-4

lonsdor-k518-mazda-bt50-3

lonsdor-k518-mazda-bt50-6

lonsdor-k518-mazda-bt50-7

lonsdor-k518-mazda-bt50-8

If all lost keys, you need at least 2 smart keys to be programmed

lonsdor-k518-mazda-bt50-9

Insert the key to be programmed and turn ignition on

lonsdor-k518-mazda-bt50-10

Communicating

Lonsdor K518ISE detect current number of keys: 2

lonsdor-k518-mazda-bt50-11

Programming key in progress

New key has been programmed

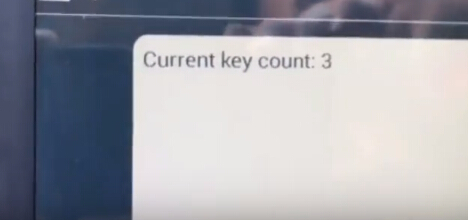

Current number of keys: 3

lonsdor-k518-mazda-bt50-12

Program success

lonsdor-k518-mazda-bt50-13

lonsdor-k518-mazda-bt50-14

The new key can start car.

Done!
