Ford Fusion 2017 smart key successfully programmed by Lonsdor K518ISE key programmer under New Mondeo menu.

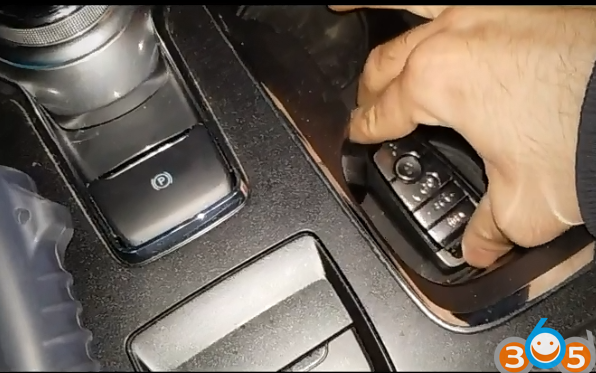

Original key (Put original key into cup holder)
New smart key 315MHz
Connect K518 with vehicle via OBD socket

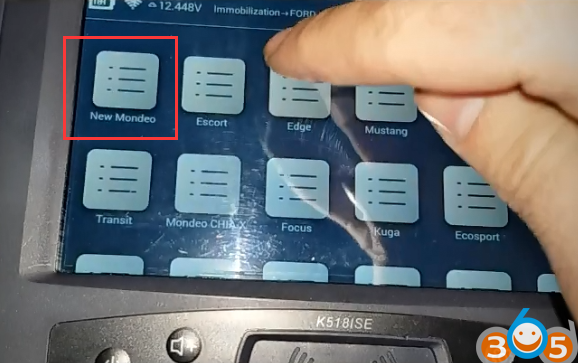

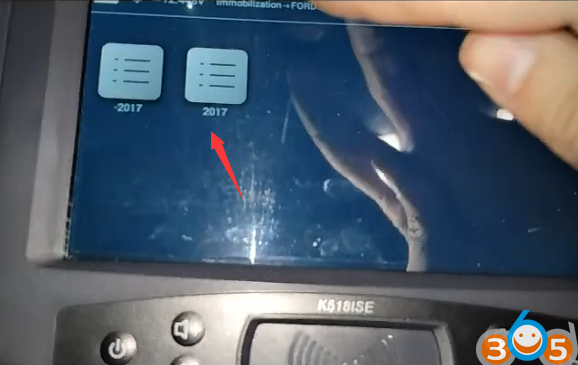

Select Immobilizer->Ford->China->New Mondeo->2017->Smart Key->Add smart key
Turn ignition switch to ON position

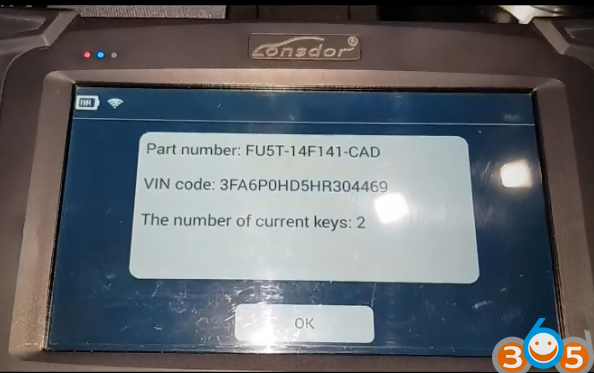

Lonsdor K518 reads vehicle info. VIN, key number

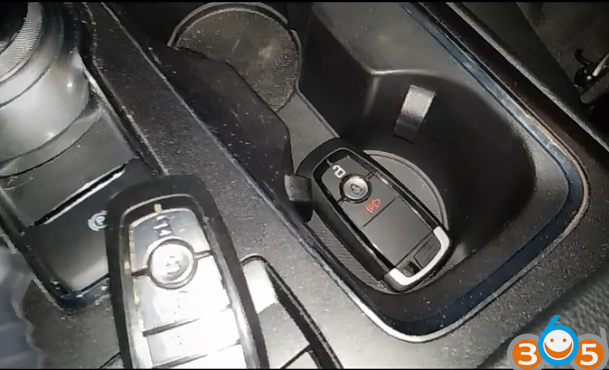

Put a new smart key into slot (cup holder) and press Start button
Programming in progress

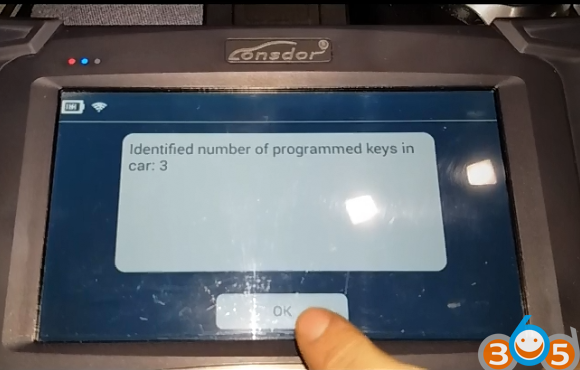

Identify new key programmed

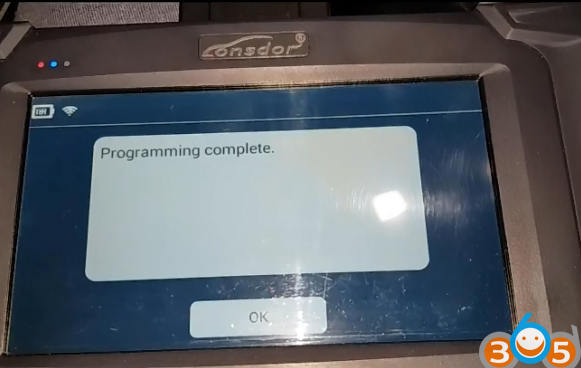

Program completed.
Test the new key.
