Lonsdor K518ISE Program Honda CR-V All Keys Lost

How to program Honda CR-V immo key when all keys lost using Lonsdor K518ISE key programmer?  Check step-by-step guide below:

Connect K518 host with vehicle via OBD diagnostic socket

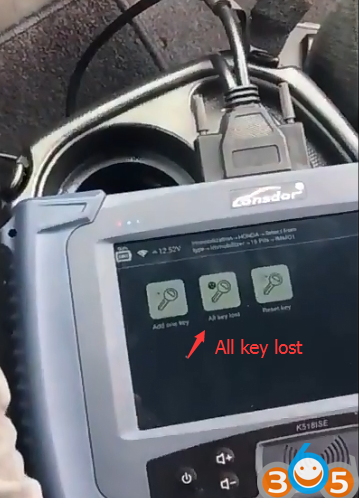

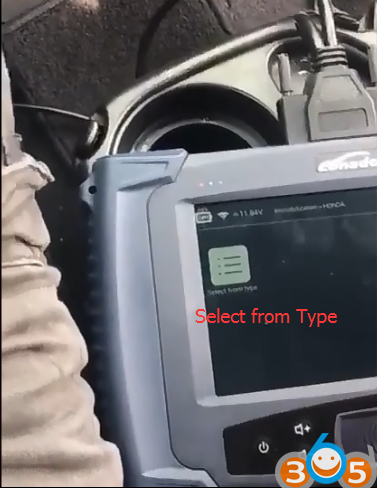

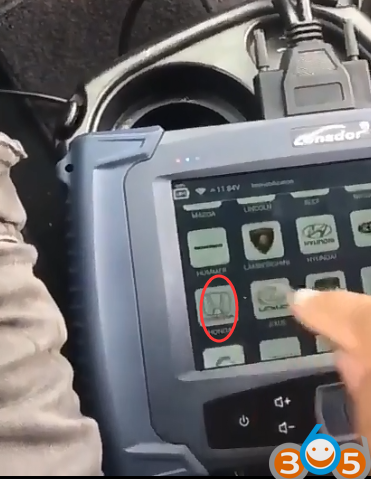

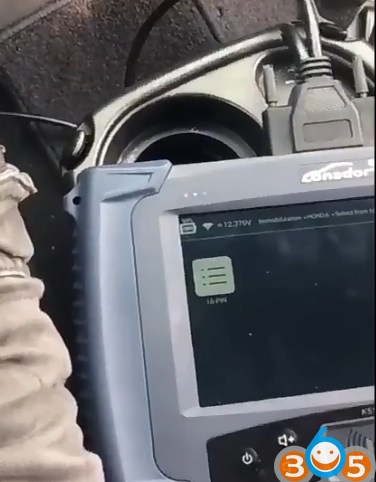

Select Immobilizer function->Honda->Select from type->Immobilizer->16-PIN->Immo type 1->All key lost

lonsdor-k518-honda-crv-1

lonsdor-k518-honda-crv-2

lonsdor-k518-honda-crv-3

lonsdor-k518-honda-crv-4

lonsdor-k518-honda-crv-5

Turn ignition switch on

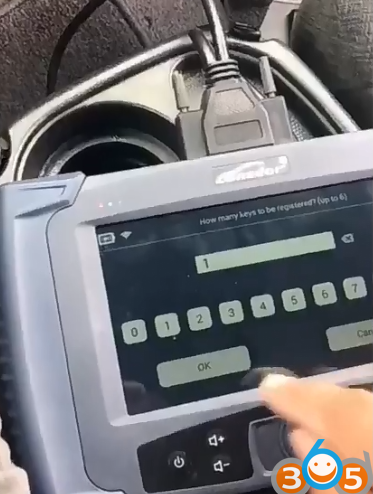

Enter key number to be programmed

lonsdor-k518-honda-crv-6

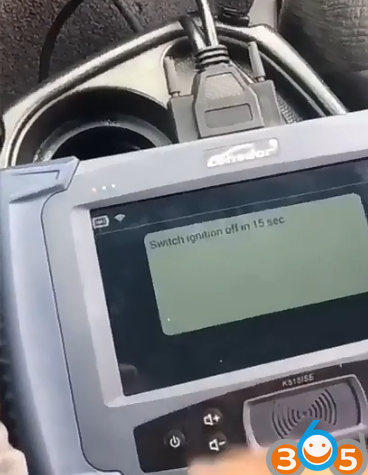

Turn ignition off within 15 sec

lonsdor-k518-honda-crv-7

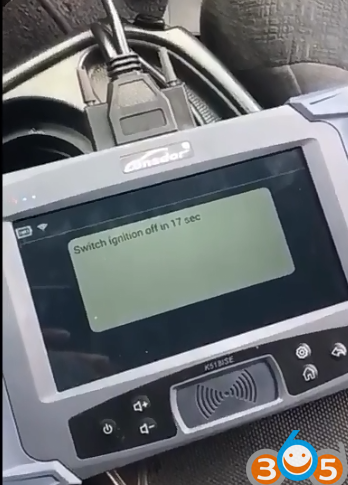

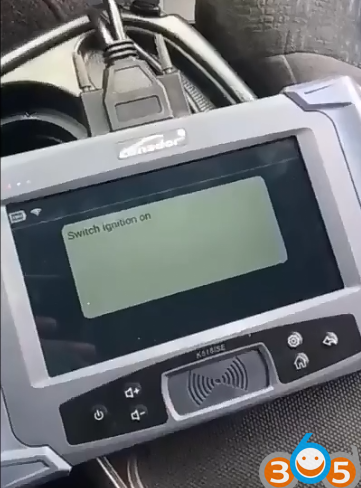

Switch ignition on and then off within 17 sec

lonsdor-k518-honda-crv-8

lonsdor-k518-honda-crv-9

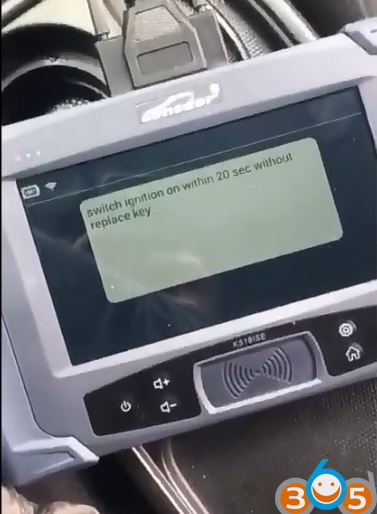

Turn ignition on within 20 sec without replacing key

lonsdor-k518-honda-crv-10

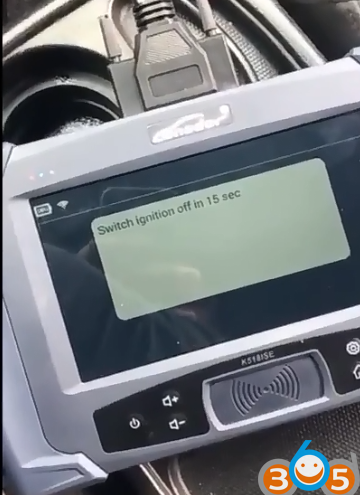

Turn ignition off within 15sec

lonsdor-k518-honda-crv-11

Turn ignition on

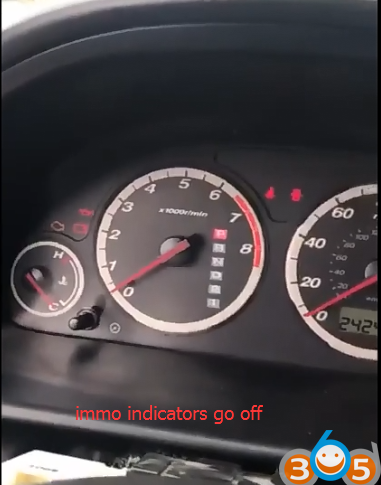

Lonsdor K518 prompts you should check if the immobilizer indicators go off

lonsdor-k518-honda-crv-12

If yes, then turn ignition off within 15 sec

Turn ignition on again

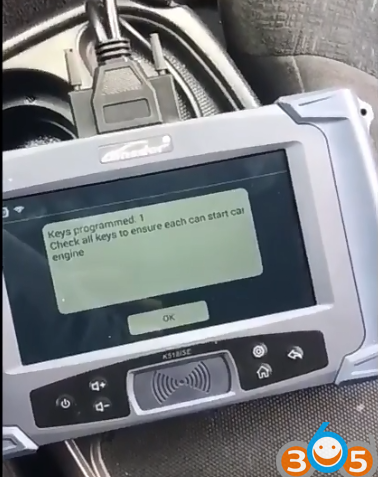

1 Key has been successfully programmed

lonsdor-k518-honda-crv-13

Program completed

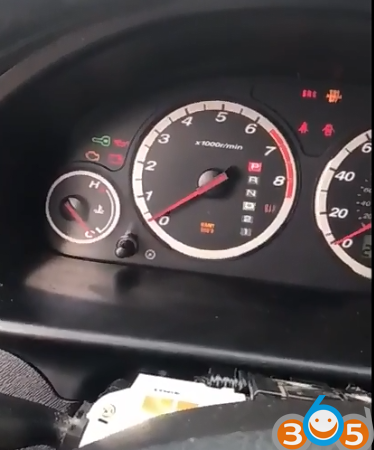

Test the new key and start vehicle.

lonsdor-k518-honda-crv-14

Done!
