Lonsdor K518ISE Program ID47 Smart Key for Nissan Qashqai 2017

The task is to program smart keys for Nissan Qashqai 2017 with ID47 Hitag 3 (AES) chip. The key programming procedure are performed by the Lonsdor K518ISE key programmer.

lonsdor-k518-nissan-Qashqai-2017-1

2-button smart key



Procedure:

Connect K518 host with vehicle via OBD socket

Turn ignition on

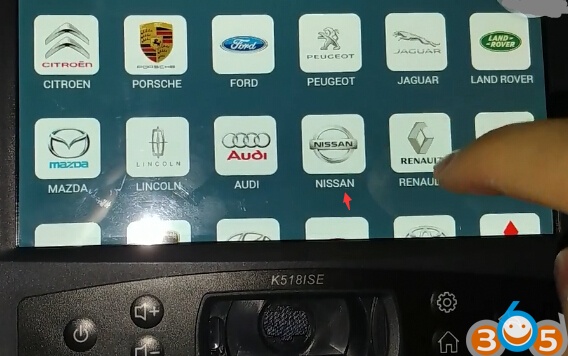

Select Immobilizer->Nissan->Select from vehicle->New X-tail->2017-> With Smart->Program Smart Key

lonsdor-k518-nissan-Qashqai-2017-2

lonsdor-k518-nissan-Qashqai-2017-3

lonsdor-k518-nissan-Qashqai-2017-4

lonsdor-k518-nissan-Qashqai-2017-5

lonsdor-k518-nissan-Qashqai-2017-6

Close all car doors and press Start button

Turn off ignition and turn on emergency flasher

lonsdor-k518-nissan-Qashqai-2017-7

Open and close driver door once

lonsdor-k518-nissan-Qashqai-2017-8

Next step will delete all smart keys. You can program up to 4 smart keys with Lonsdor K518

lonsdor-k518-nissan-Qashqai-2017-9

Press the Start button, put smart key to be programmed  close to the Start button within 5 sec.
The instrument turns on and the security indicator will flash 5 times

Then turn off ignition, wait for 5 sec

lonsdor-k518-nissan-Qashqai-2017-10

Program success. Press OK to program next key, press Cancel to exit

Press the Start button, put the smart key programmed above close to the Start button,
if you hear the buzzer rings continuously which indicates that programming is comppleted

lonsdor-k518-nissan-Qashqai-2017-11

Lonsdor will program the remote control automatically

Test the new smart key

lonsdor-k518-nissan-Qashqai-2017-12

Working!!!



BTW: Lonsdor K518ISE will read pin/bcm/rolling code for this model as well.

lonsdor-k518-nissan-Qashqai-2017-13

lonsdor-k518-nissan-Qashqai-2017-14

lonsdor-k518-nissan-Qashqai-2017-15
