Lonsdor K518ISE Program Toyota Innova 2015 All Keys Lost by OBD

Lonsdor K518ISE key programmer has successfully tested on a Toyota Innova year 2015 middle east model when all keys have lost by OBD.



Connect K518ISE host with vehicle via OBD diagnostic socket

Turn ignition on

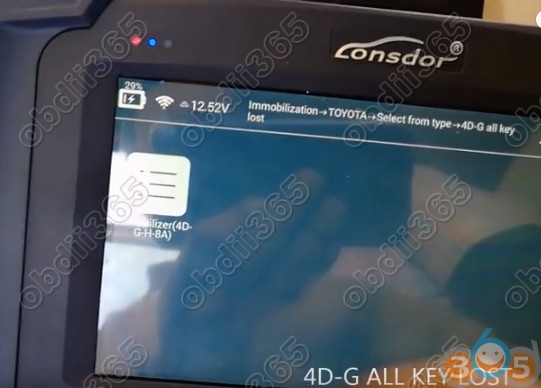

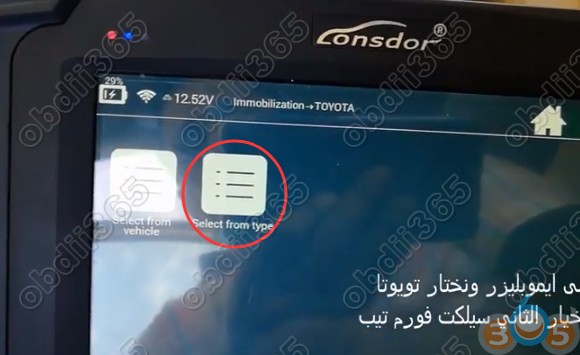

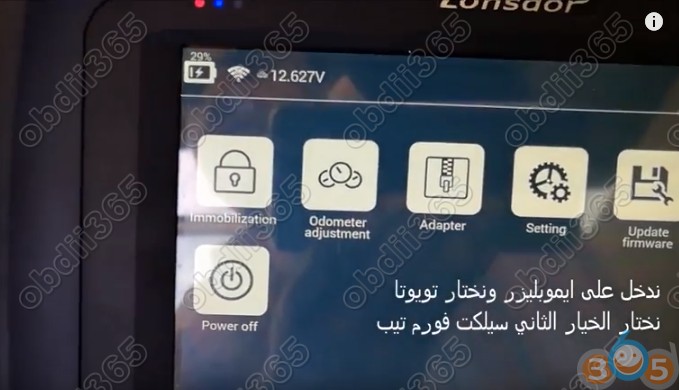

Select Immobilizer->Toyota->Select from type->4D-G all key lost->Immobilizer (4D-G-H-8A)

k518ise-TOYOTA-INNOVA-2015-1

k518ise-TOYOTA-INNOVA-2015-2

k518ise-TOYOTA-INNOVA-2015-3

k518ise-TOYOTA-INNOVA-2015-4

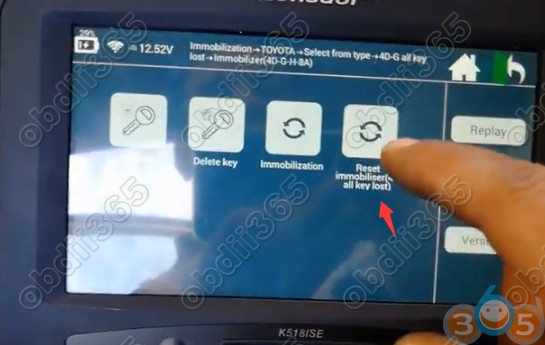

Select Reset Immobilizer (4D all key lost)

k518ise-TOYOTA-INNOVA-2015-5

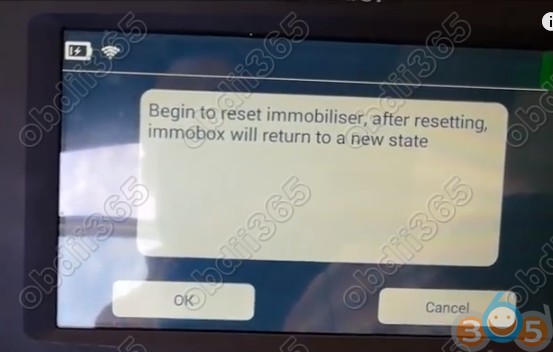

Stat to reset immobilizer

k518ise-TOYOTA-INNOVA-2015-6

Turn ignition off

Turn ignition on

Configuring system

Turn ignition off and remove key

k518ise-TOYOTA-INNOVA-2015-7

Turn ignition on again

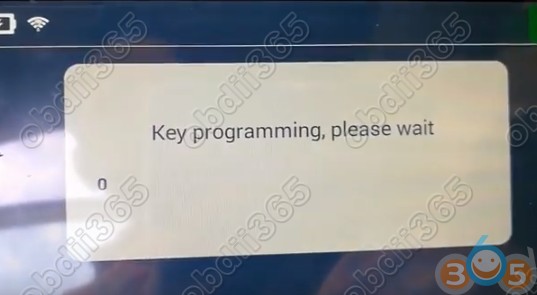

Key programming is in progress

k518ise-TOYOTA-INNOVA-2015-8

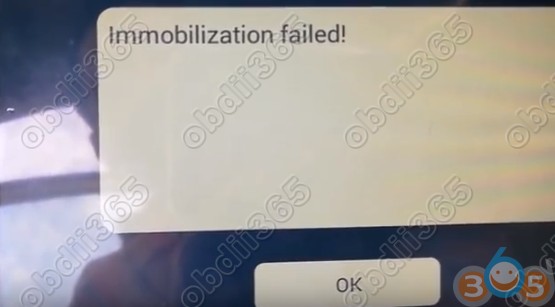

If Lonsdor K518 prompts “Immobilizer failed” error, do following:

k518ise-TOYOTA-INNOVA-2015-9

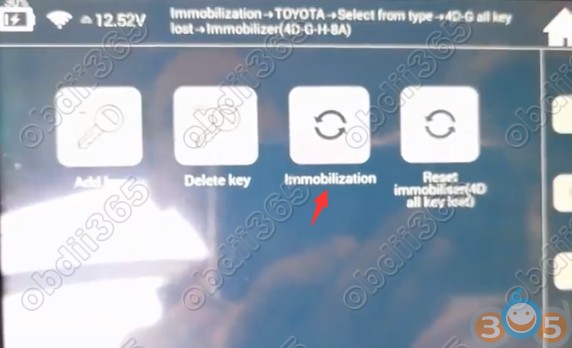

Select Immobilization function

k518ise-TOYOTA-INNOVA-2015-10

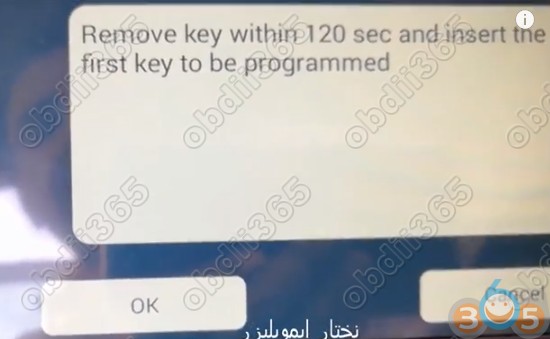

Remove key within 120 sec and insert the 1st key to be programmed

k518ise-TOYOTA-INNOVA-2015-11

Communication processing

Programming key

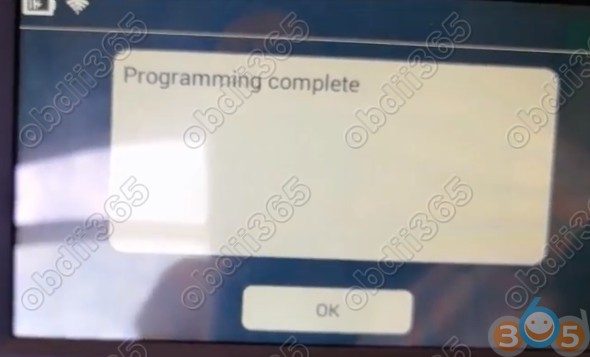

Programming completed

k518ise-TOYOTA-INNOVA-2015-12

Test the new key.
