Lonsdor K518ISE Read Hyundai i35 2014 PIN and Program Key

How to: read Hyundai i35 2014 pin code and program remote key with Lonsdor K518ISE key programmer and keydiy remote.



Step 1:

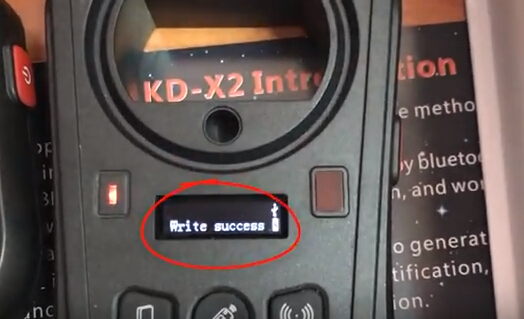

Write Keydiy remote with Keydiy KD-X2 remote maker

lonsdor-k518ise-hyundai-i35-2

Step 2: Read Hyundai ix35 46 chip Pin code with Lonsdor

Connect K518 host with vehicle via OBD socket

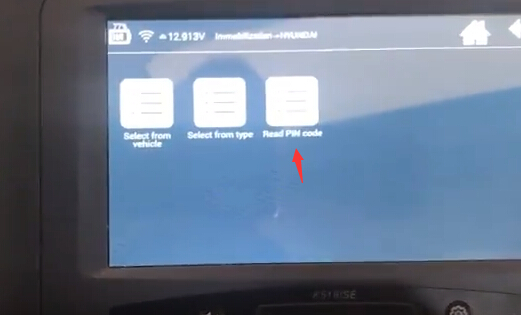

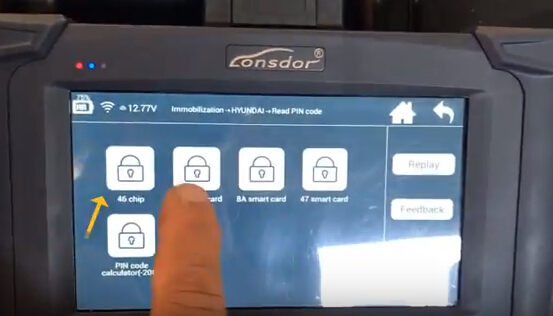

Select Immobilizer->Hyundai->Read pin code->46 chip

lonsdor-k518ise-hyundai-i35-3-1

lonsdor-k518ise-hyundai-i35-3

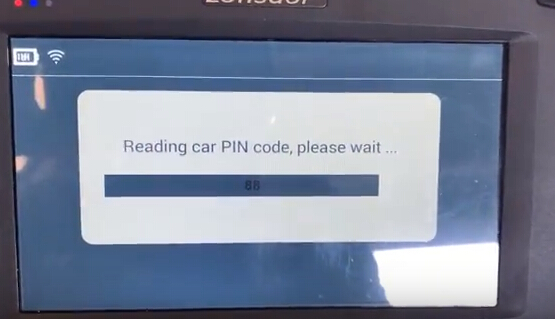

Turn on ignition

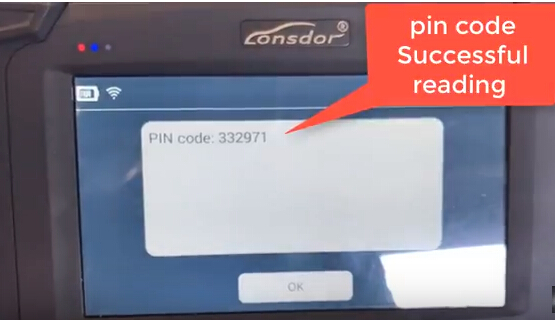

Read pin code success

lonsdor-k518ise-hyundai-i35-4

lonsdor-k518ise-hyundai-i35-5

Step 3: Program key with Lonsdor K518

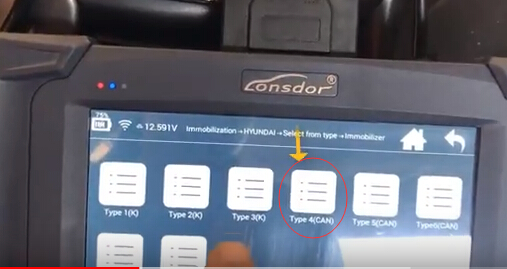

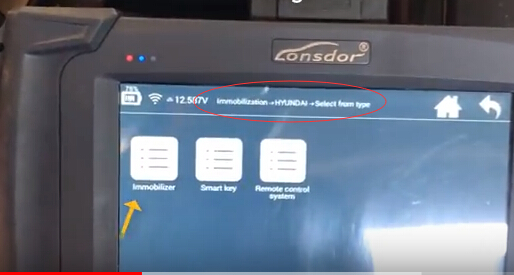

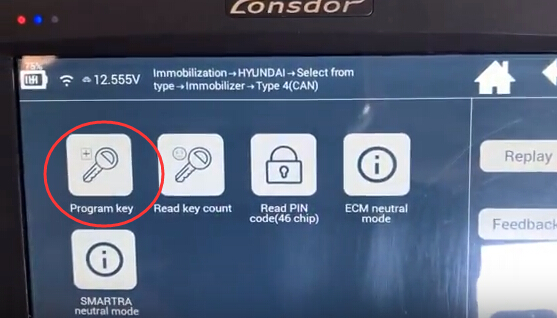

Select Hyundai ->Select from type-> Immobilizer->Type 4 (CAN)->Program key

lonsdor-k518ise-hyundai-i35-6

lonsdor-k518ise-hyundai-i35-7

lonsdor-k518ise-hyundai-i35-8

Turn ignition to ON position

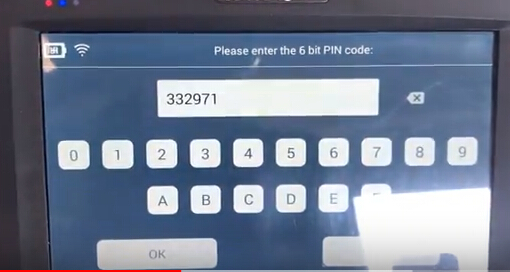

Lonsdor K518 require enter pin code to access

lonsdor-k518ise-hyundai-i35-9

Program key in progress

lonsdor-k518ise-hyundai-i35-10

1st key program success

Press YES to program next key

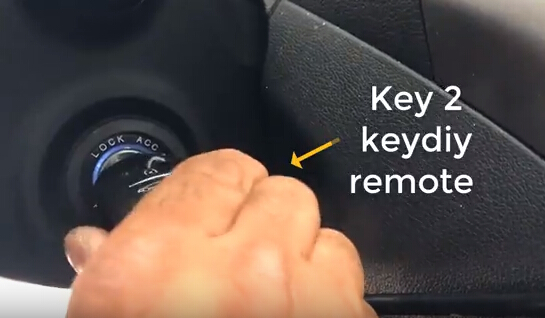

Replace next key, Turn ignition to ON position

lonsdor-k518ise-hyundai-i35-11

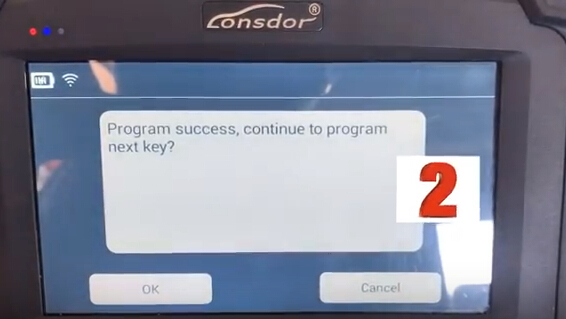

2nd key program success.

lonsdor-k518ise-hyundai-i35-12

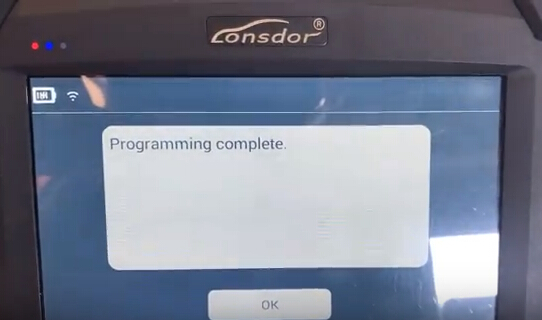

Programming complete

lonsdor-k518ise-hyundai-i35-13

Step 4: Program remote control with Lonsdor k518ISE

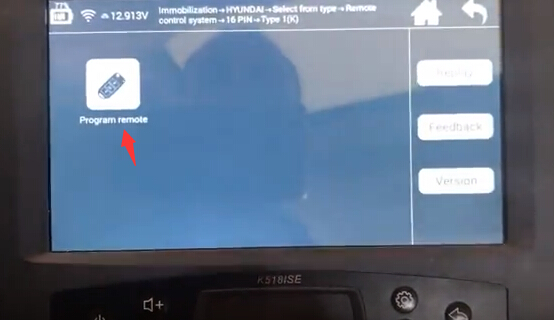

Select Hyundai->Select from type->Remote control system->16 pin->Type 1 (K) ->Program remote

lonsdor-k518ise-hyundai-i35-18

Up to 4 remotes can be programmed only.

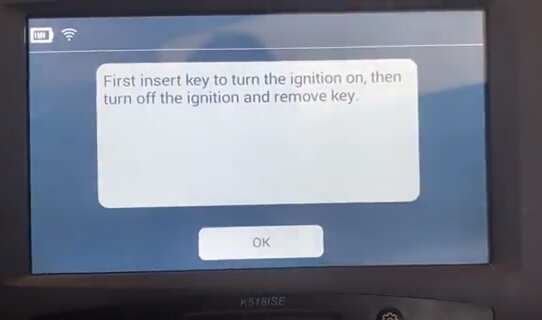

Insert first key and turn ignition on, then turn ignition off and remove key.

lonsdor-k518ise-hyundai-i35-19

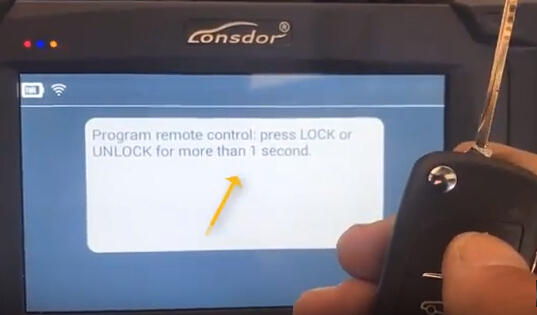

Press LOCK ort UNLOCK button for more than 1 second to program remote control

lonsdor-k518ise-hyundai-i35-20

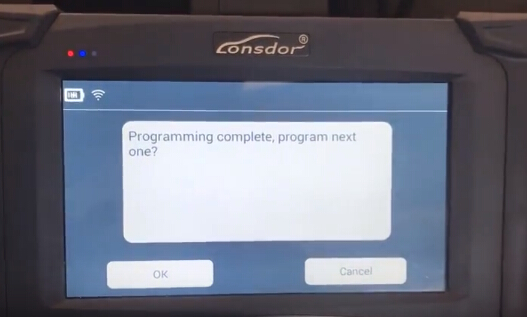

Program remote success, follow same procedure to program next one.

lonsdor-k518ise-hyundai-i35-21

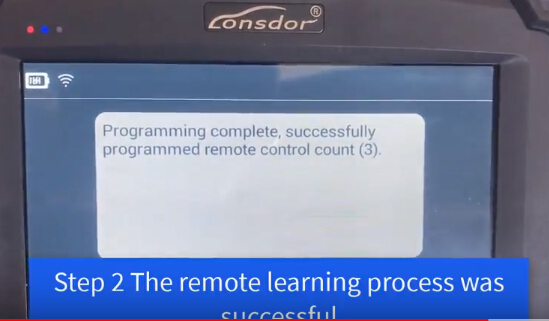

All remotes need to be programmed

lonsdor-k518ise-hyundai-i35-22

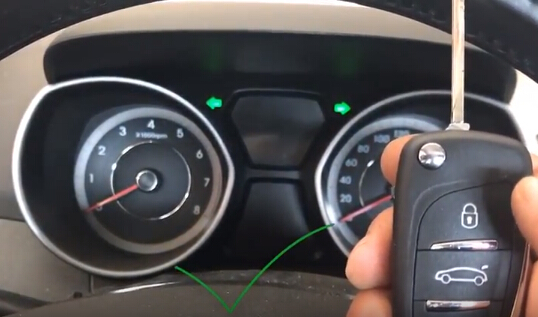

Test the remote control and start vehicle.

lonsdor-k518ise-hyundai-i35-23

Done.
