SKP1000 Program Mazda CX-5 2016 Smart Key by OBD

Guide to program Mazda CX-5 2016 compact crossover SUV 2-button 433MHz smart key by using SKP1000 key programmer.



Procedure:

Connect SKP-1000 tablet with vehicle via OBD socket

Turn ignition switch to ON position

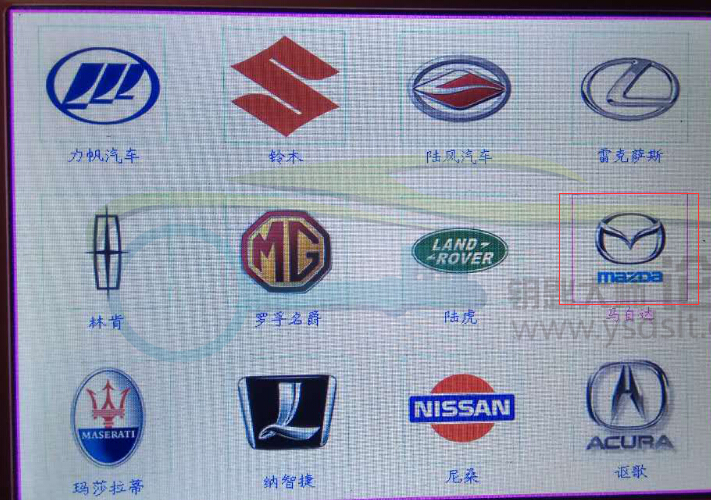

Select Immobilizer function-> Mazda

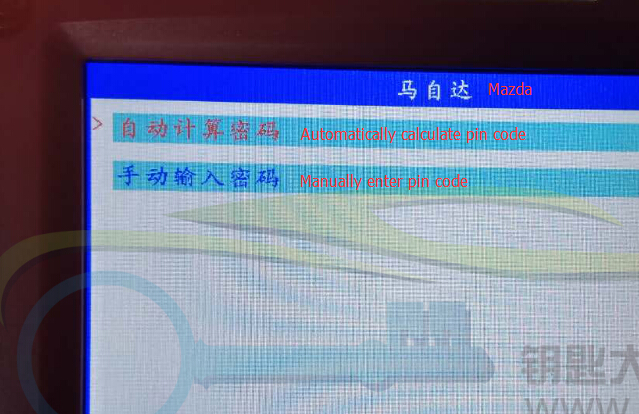

Select Automatically calculate pin code

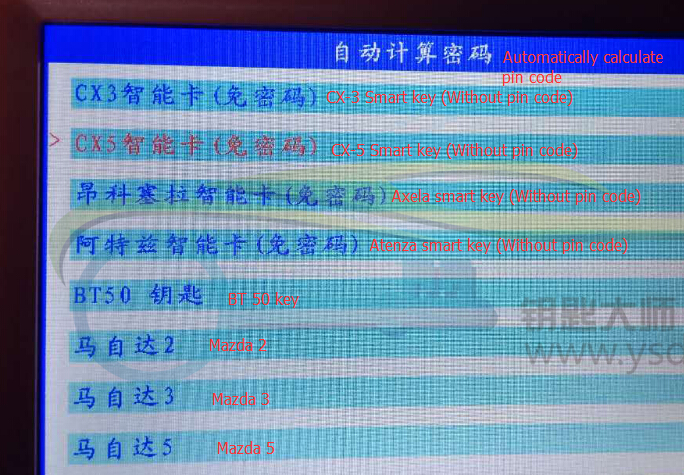

Select CX-5 smart key (without pin code)

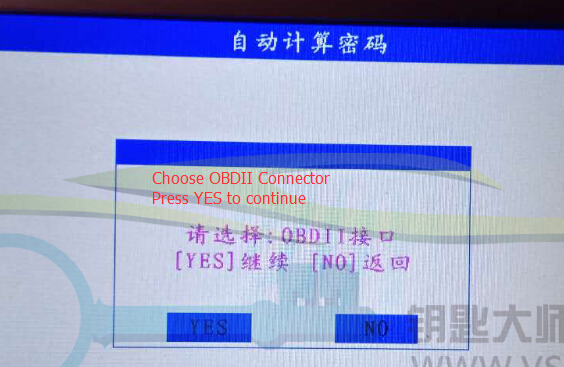

Choose OBDII connector

Turn ignition ON

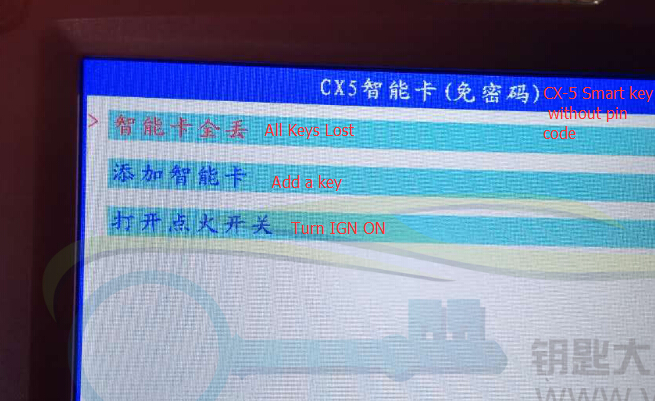

Select All Key Lost (Because customer has lost one smart key, he want to delete/disable that key. Here we choose All keys lost mode)

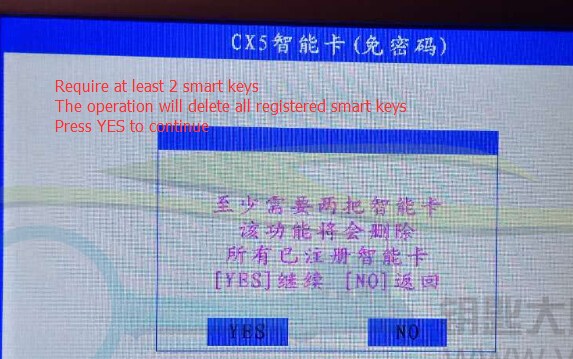

SKP1000 prompt require at least 2 smart keys to be programmed. The operation will delete all registered smart keys. Press YES to continue

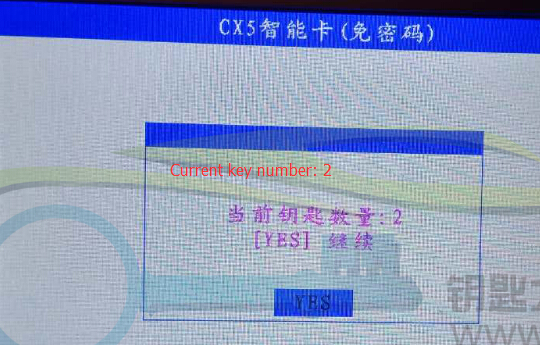

SKP1000 car key programmer shows key number programmed: 2

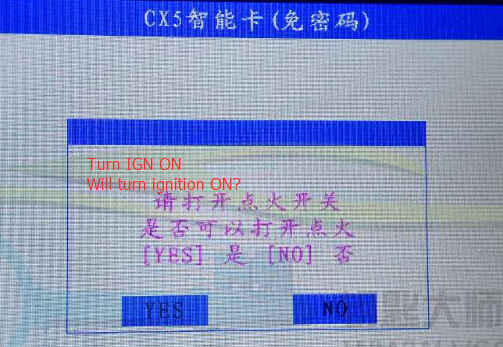

Turn ignition ON

If you can turn on ignition, press YES to continue

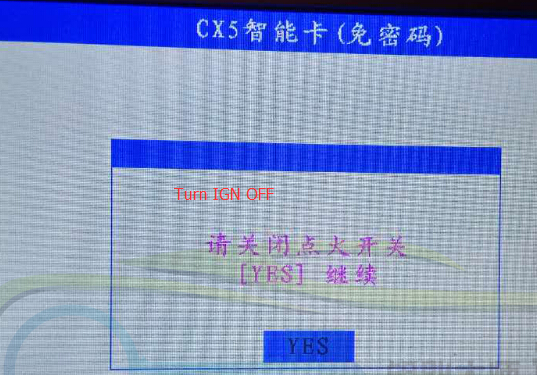

Turn ignition OFF

Press YES to continue

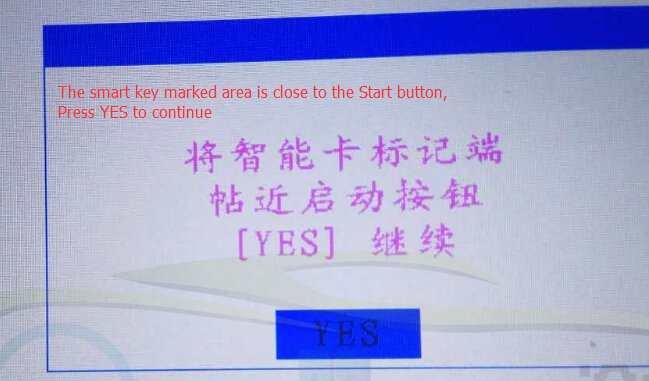

The smart key marked area is close to the Start button.

Press YES to continue

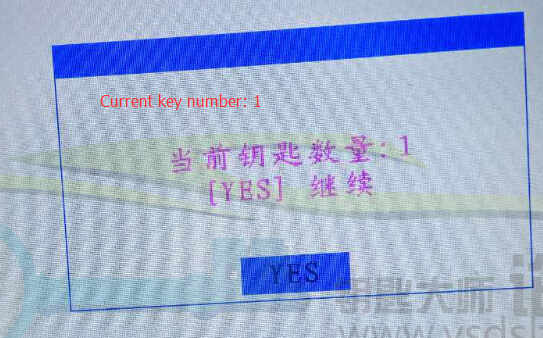

Current key number: 1

Press YES

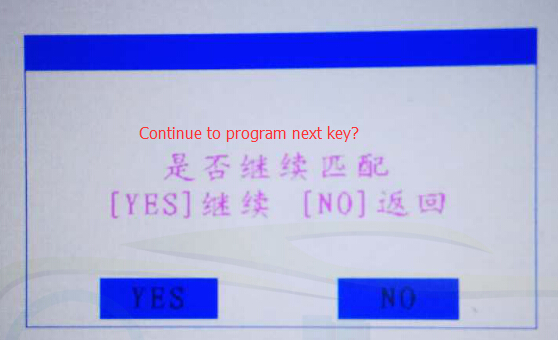

Continue to program next key?

Press YES

Turn ignition OFF

Turn ignition ON

The smart key marked area is close to the Start button.

Press YES

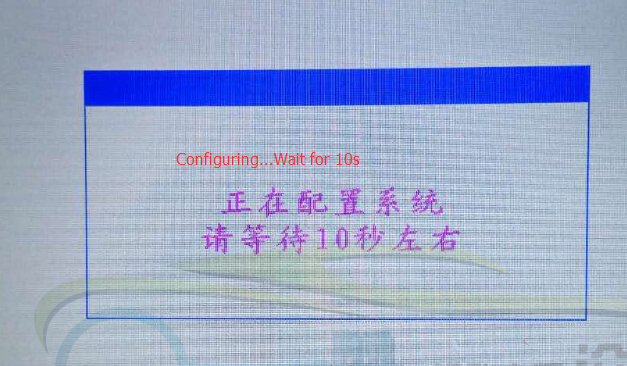

Configuring system… wait for 10 seconds

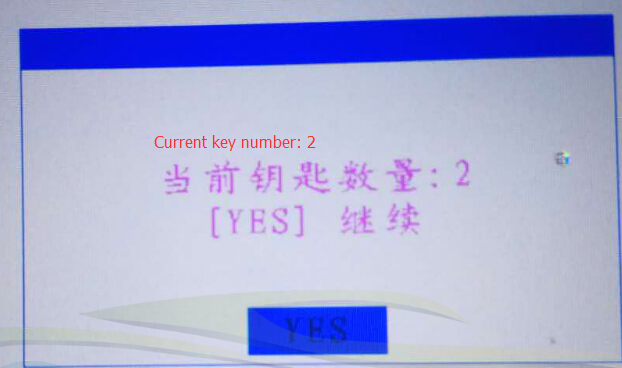

Current key number: 2

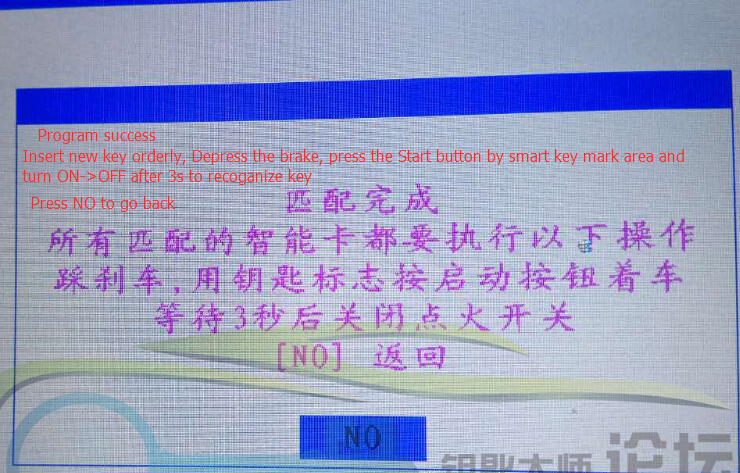

Program Success.

Insert 2 new key orderly. Depress the brake, press the Start button by smart key mark area and turn ON->OFF after 3s to recognize smart key.

Test the new smart keys.
